MM electric slug fence instructions

This electric fence keeps (almost*) all slugs out - both slugs and snails, big or small. As soon as the slug touches one of the bottom and one of the top wires, it receives a mini electric shock and turns around.

The electric shock is so small that you - or other animals or children - won't feel anything when you touch it. Unless you touch the wires with your tongue, but you probably weren't planning on doing that 🙂

On this page, I will show you how to:

install the electric fence on your MM-hero or MM-bamboo
check if it's working properly
use it over the years

If you don't have the electric fence yet or want to know more about it, you can find it in the shop.

Installing it on your MM-hero or MM-bamboo

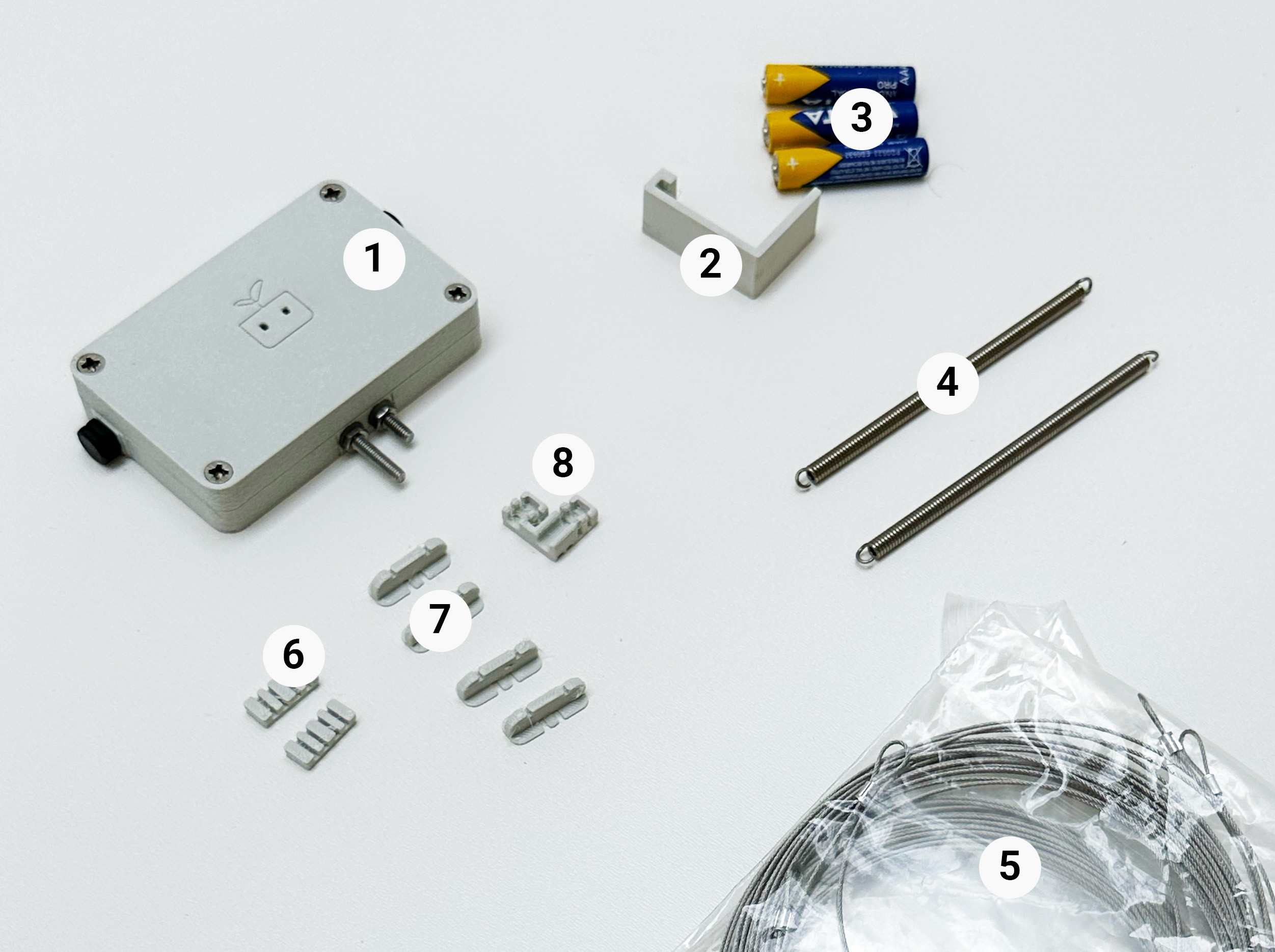

The only tool you need is a Phillips screwdriver. Everything else can be found in the box.

Place the batteries

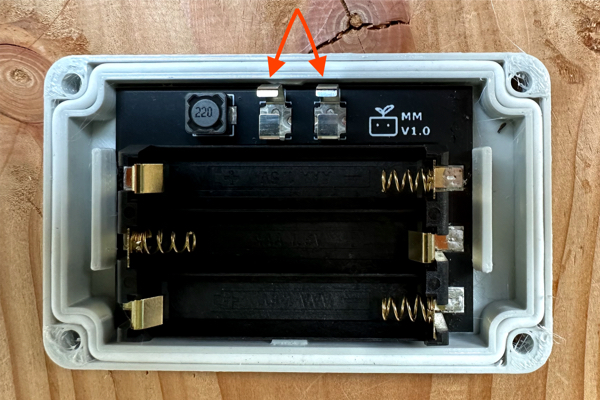

Open the box and insert the batteries into the holders. Pay attention not to bend these contact points:

Check if the right light in the logo is now blinking green.
Close the box - the logo points upwards and the bars are at the bottom.
Tighten the screws again so that there are no gaps.

Unwind the wires.

Do this carefully to prevent them from getting tangled. Use gloves if necessary, as there may be sharp points.

The first wire

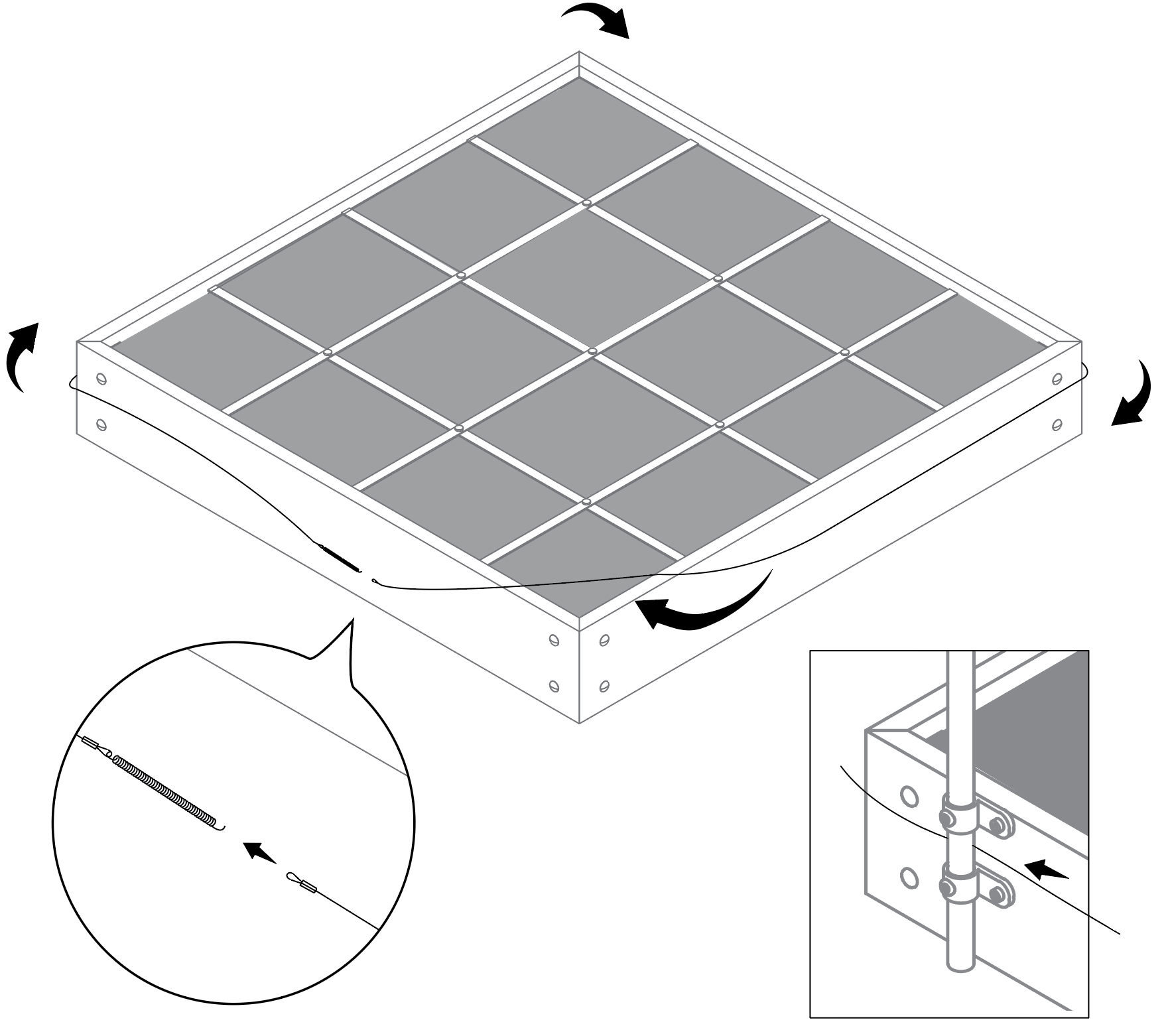

*Place the wire around your box and secure the ends at a spring*

Lay the wire around the first 3 corners of your raised bed, and over the last corner.

If you have a trellis, thread the wire between the tube and the raised bed, between the two connectors.

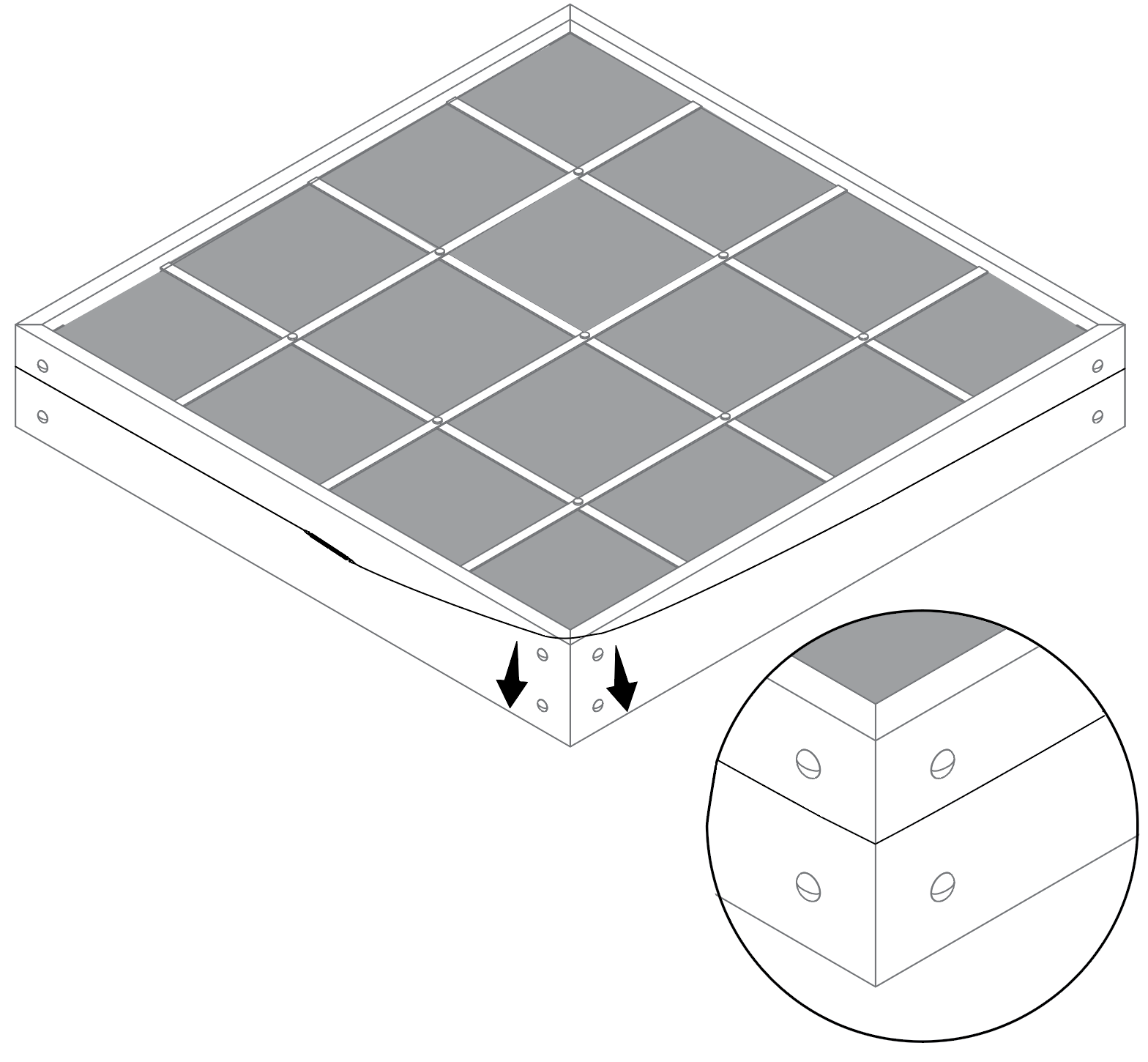

Attach the ends to one of the springs, then pull the wire around the last corner of the raised bed:

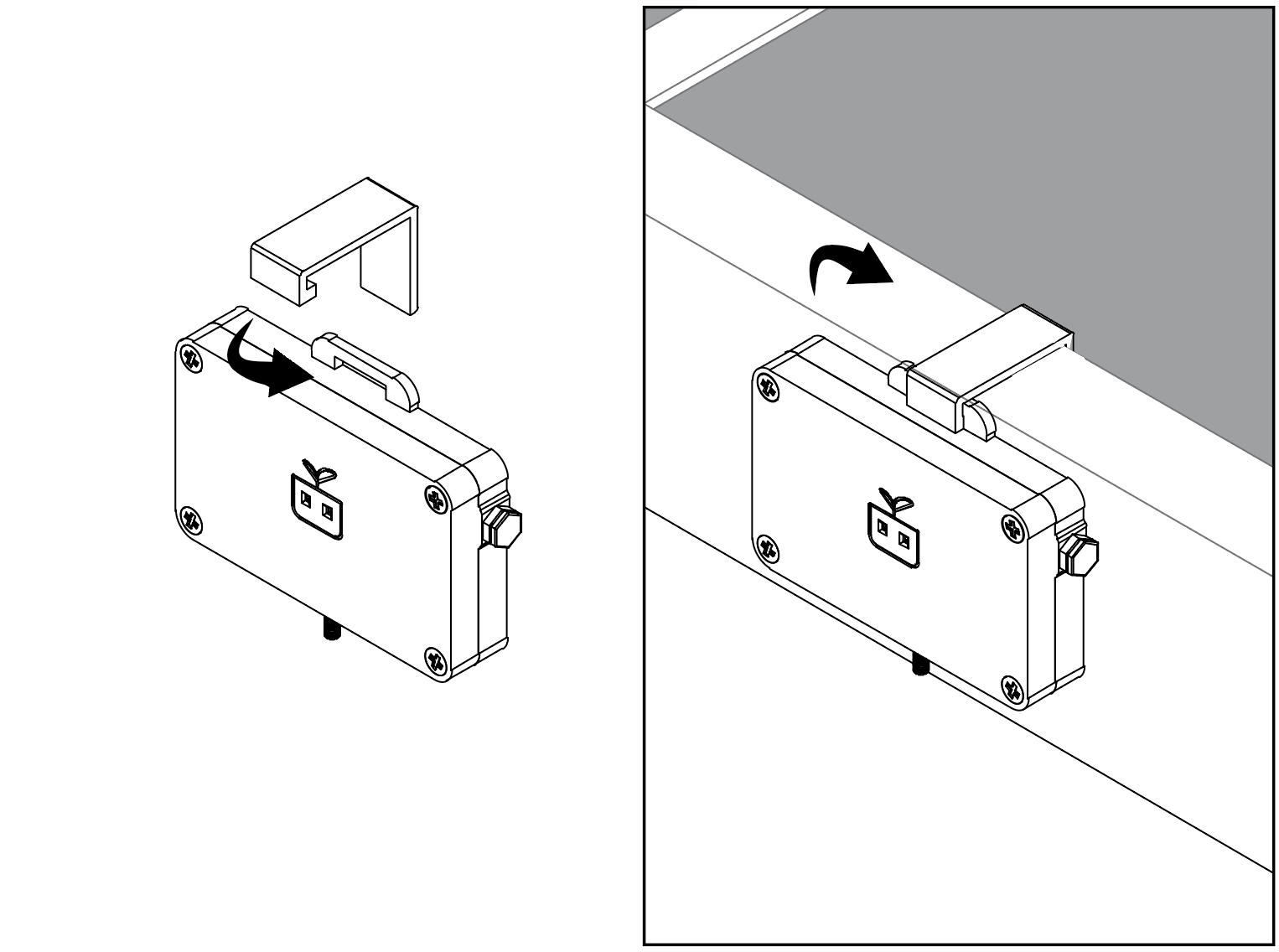

Hang the box with the hanging clip on the edge of the garden box. Be careful not to bend the clip, as it may break.

Check if the wire is at the same height as the bottom of the longest rod everywhere. If not, pull the wire towards it.

To check this, slide the box straight up - this way you don't bend the hanging clip - and hang it in different places on your container.

*Check if the wire is at the correct height everywhere and adjust it if necessary.*

The second wire

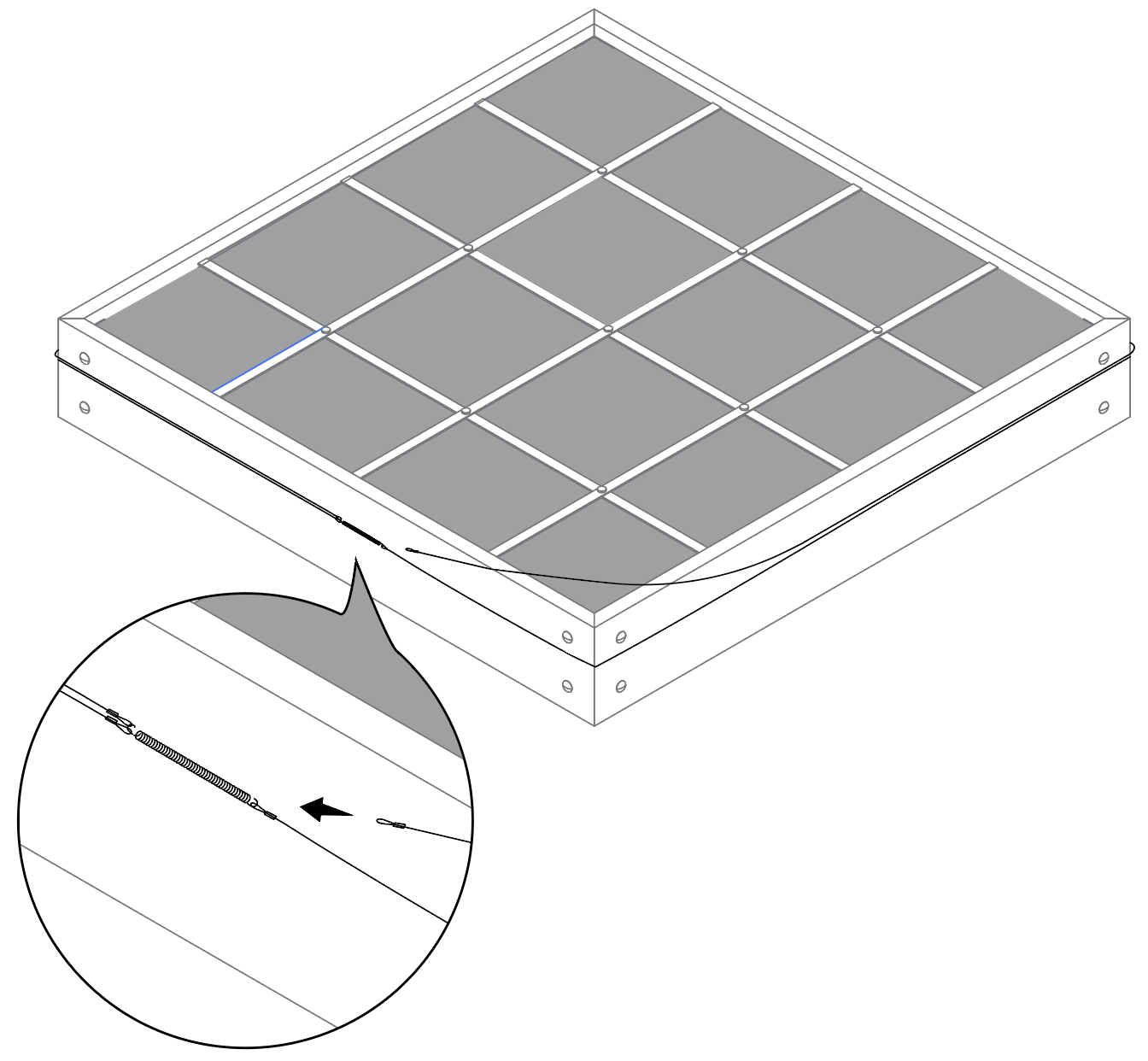

Tension the second wire just above the first wire - in the same way and on the same spring:

Check carefully that the wires run neatly parallel and do not cross anywhere. If they do, loosen the second wire and do it again.

The third and fourth wire

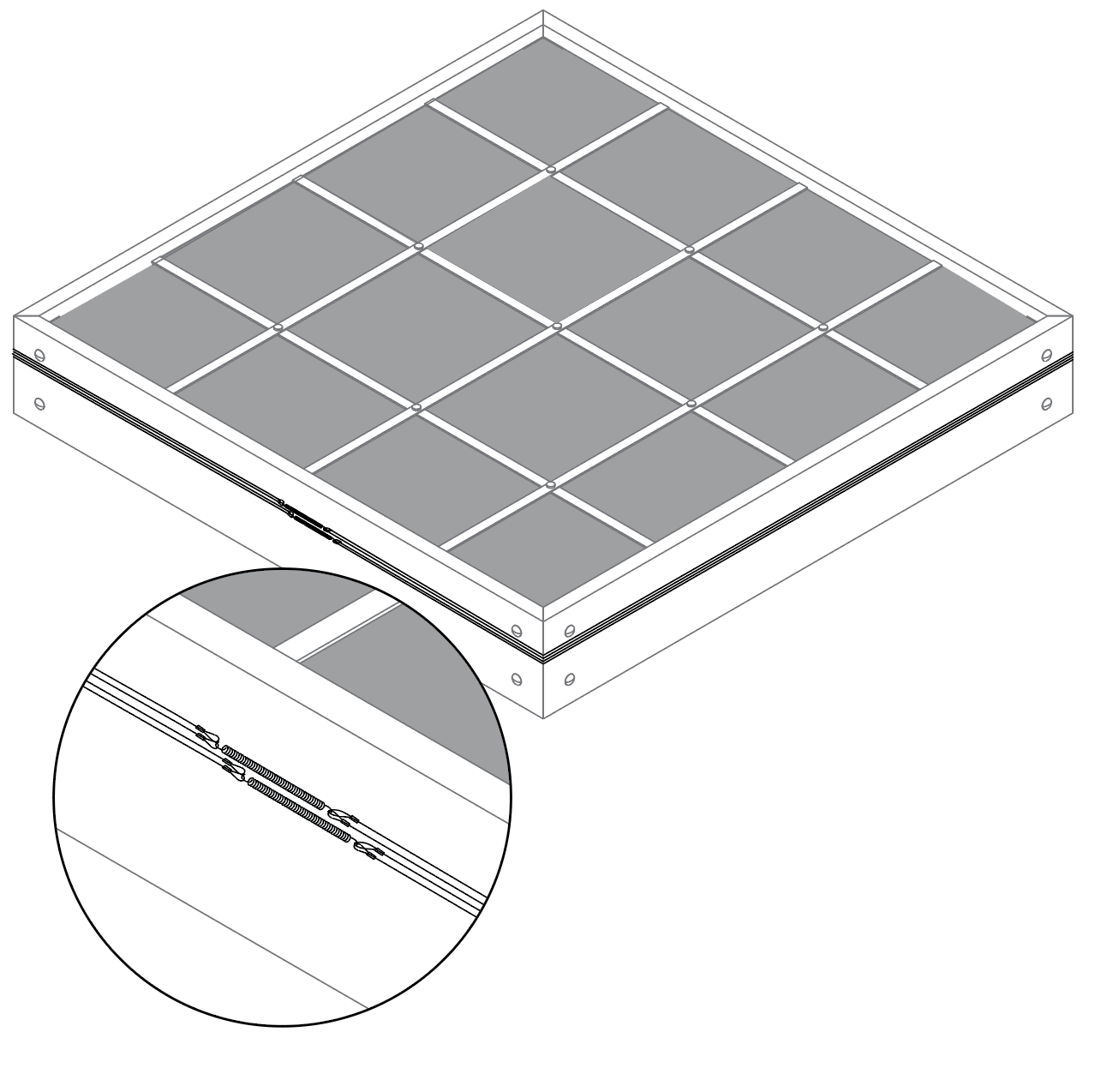

Now do the same with the third and fourth wire. Place them above the first and second wire:

Again, the wires must have the same distance from each other everywhere.

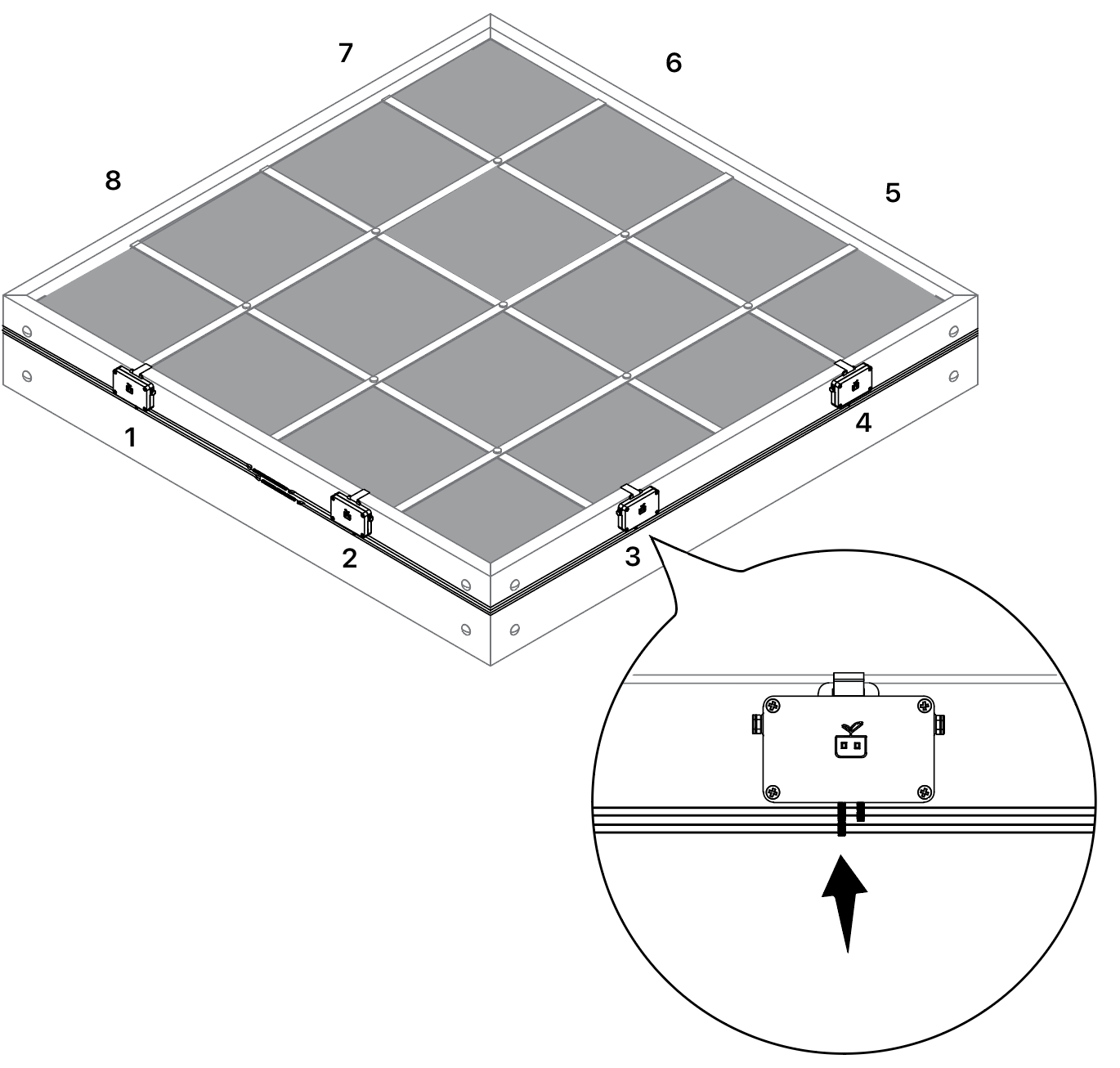

So use the box to check the correct height of the wires: the bottom wire at the bottom of the longest rod, the top wire just below the box itself:

If there is more than a centimetre between the control box and the top wire, move all the wires up a little.

Then check again that the wires run neatly parallel and do not cross anywhere.

Place the box

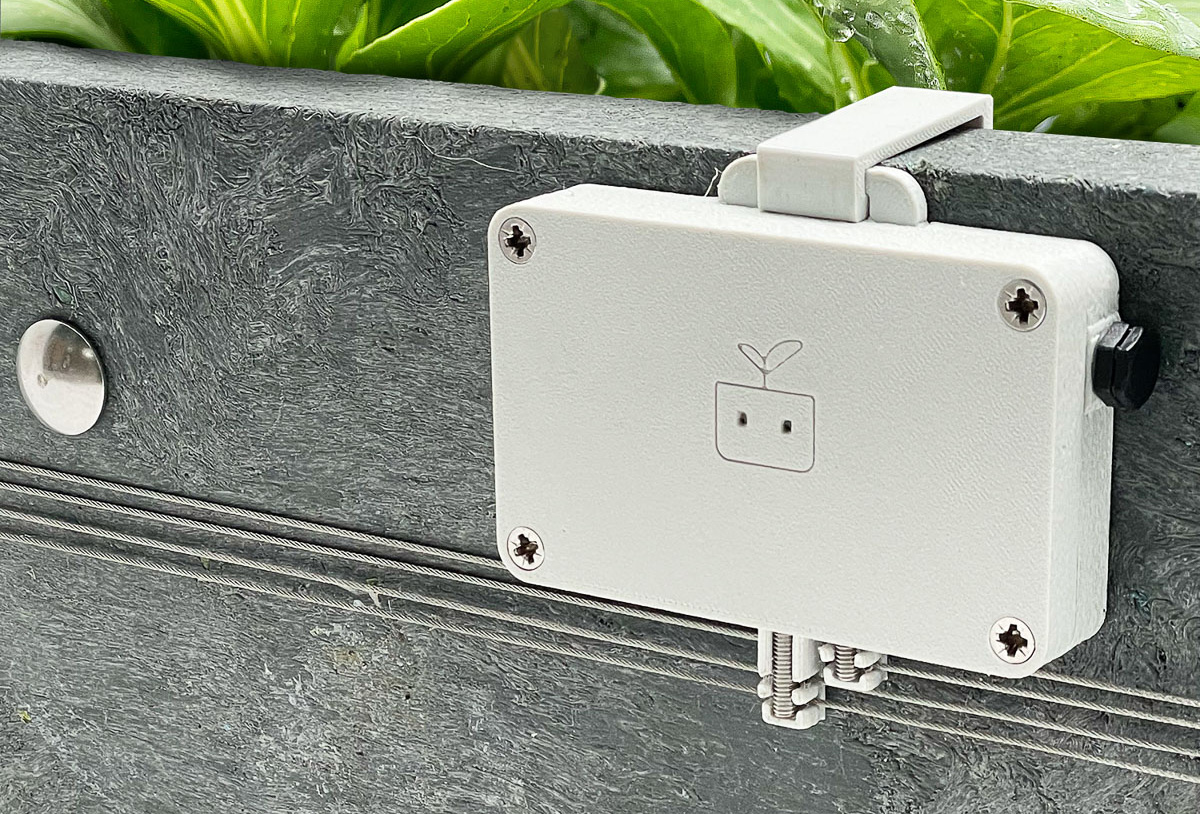

Then hang the box at its final position at the edge of your box. It doesn't matter where, as long as it is at least 50 cm away from the springs.

Attach the wire holder

Now you need to insert the wires into the wire holder:

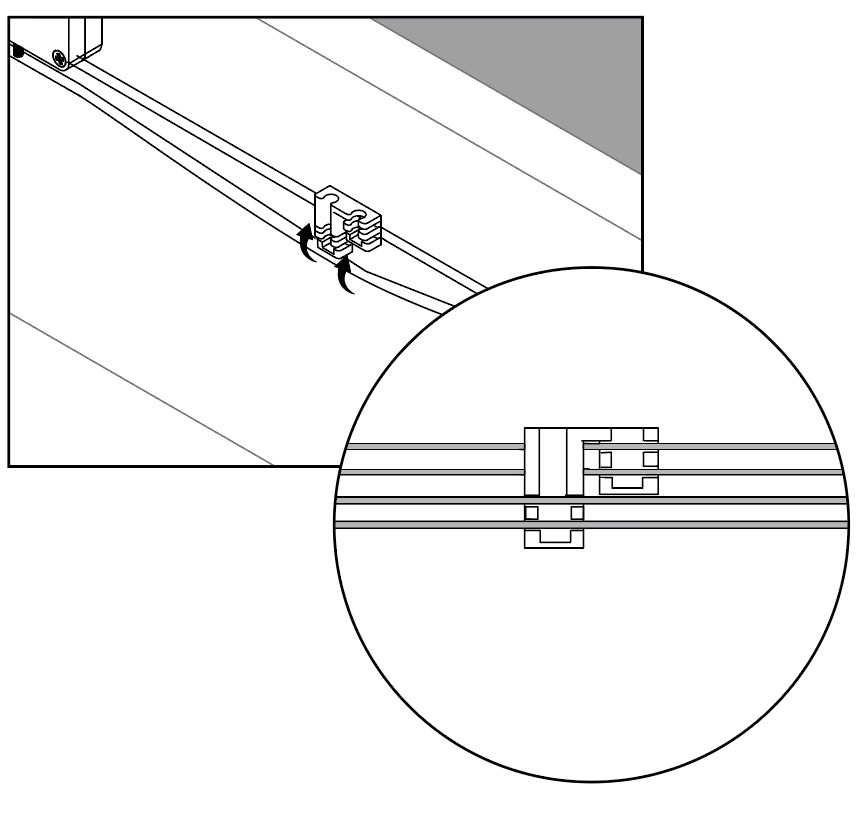

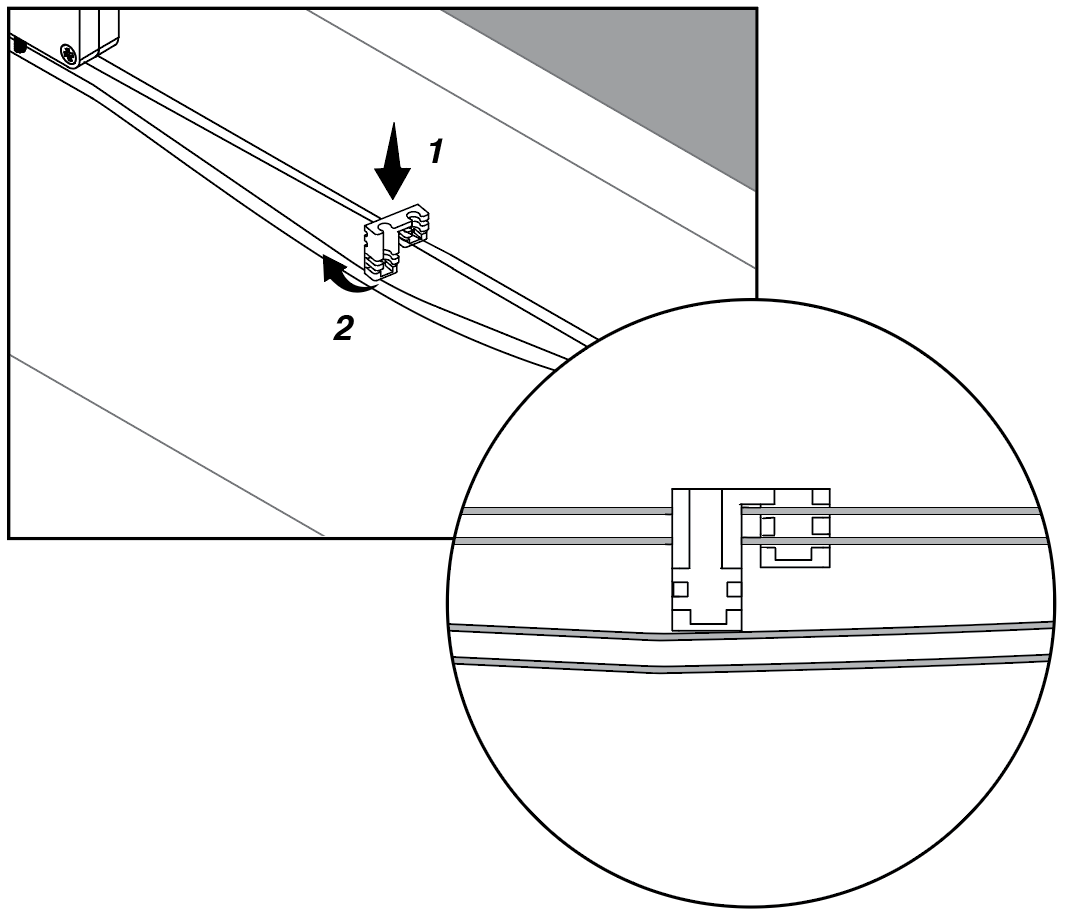

To do this, hang the wire holder: over the top two wires (1) and then turn it to the left (2). This way, the top wires will fit into the slots of the short right piece.

*The top wires fit into the right slots and are located in the slots at the back of the left side.*

Place the bottom wires into the slots of the longer right piece:

*The bottom wires go into the left slots.*

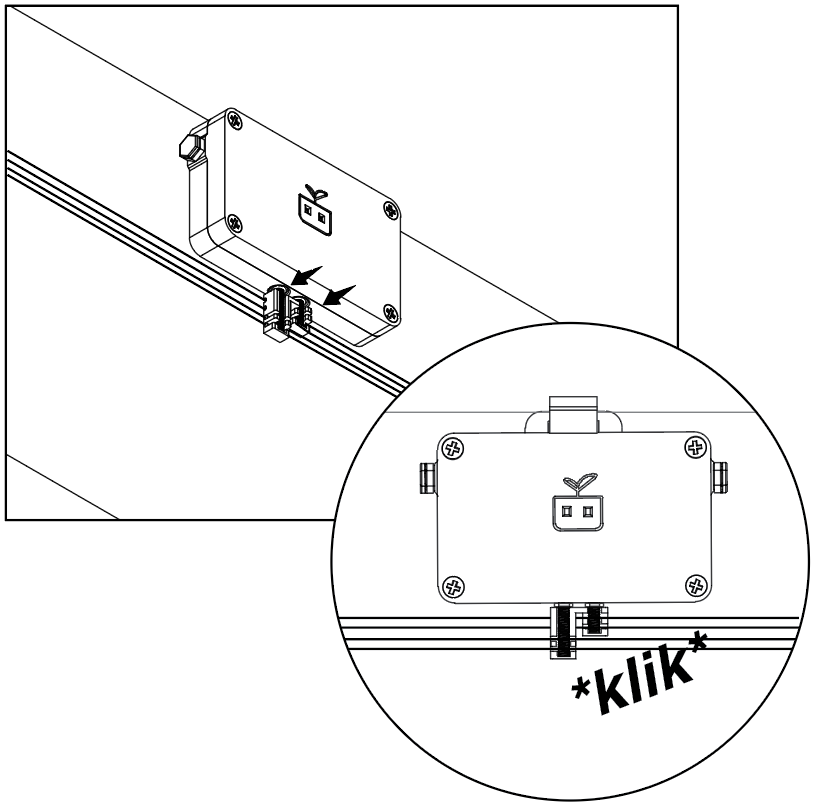

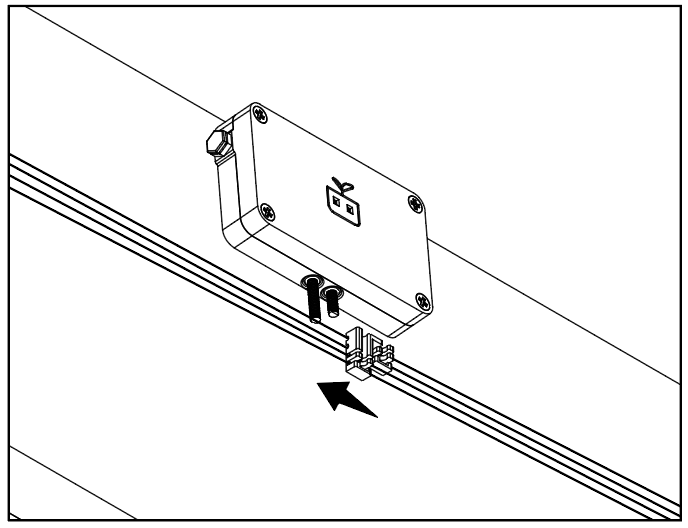

Slide the wire holder under the rods: the rods are now hanging above the full length of the slots in the holder.

Press the rods firmly into place, so that they are securely attached and make contact with the wires.

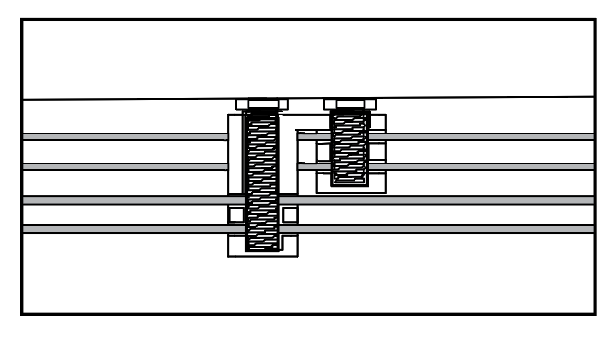

The bottom of the rods should be inserted as far as possible into the wire holder:

Check if the wires make good contact with the batteries. You do this by squeezing the four wires together and checking if the red light turns on.

Place the spacers

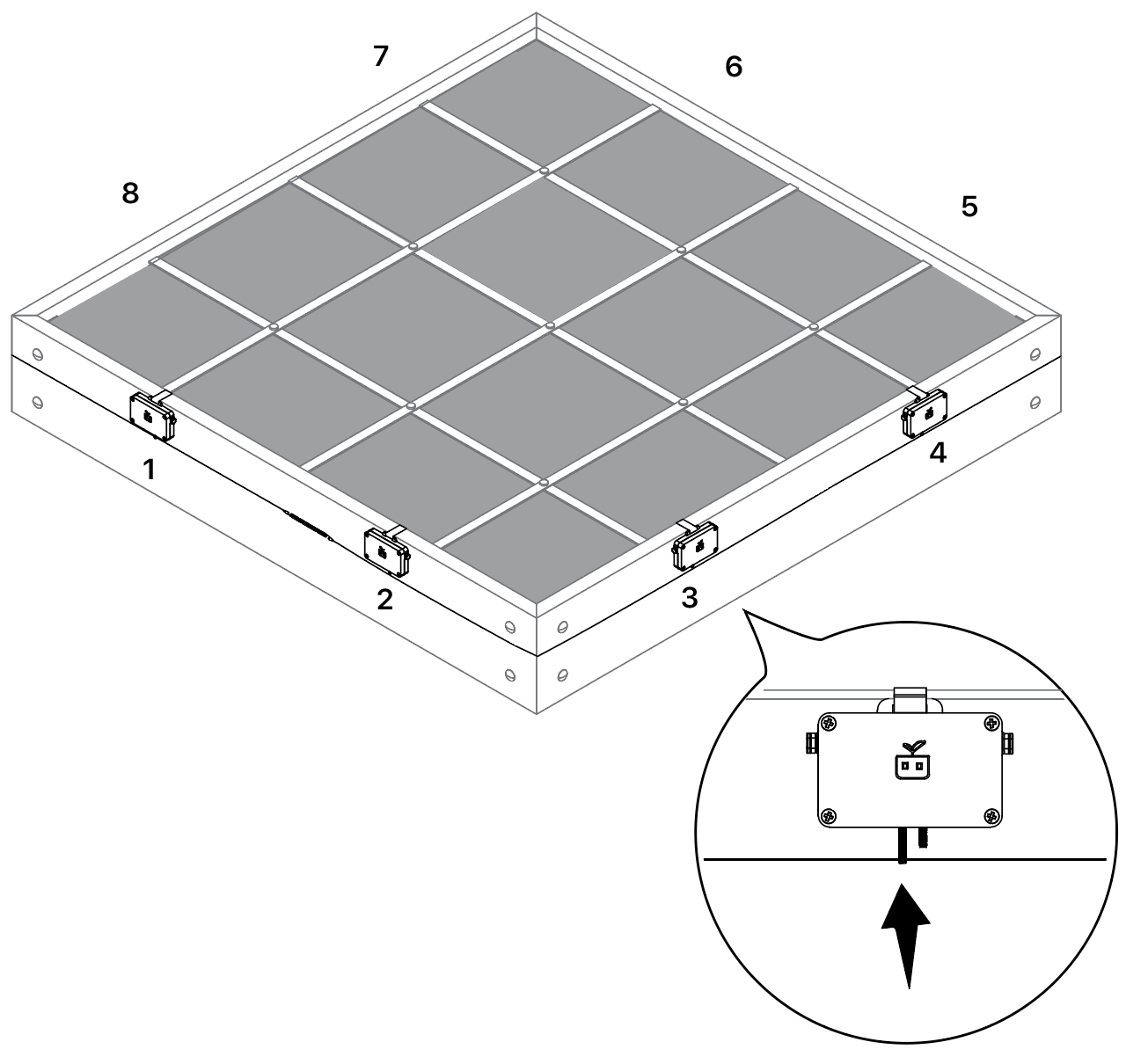

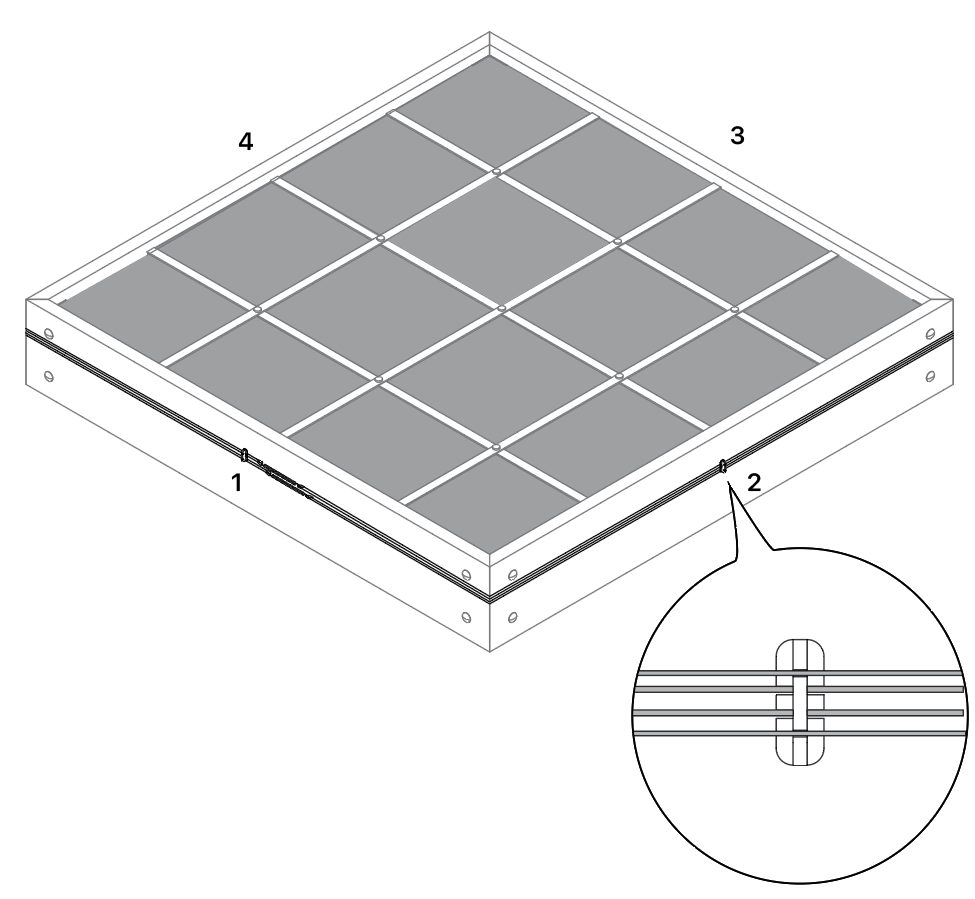

Attach the wires to the four spacers - in the middle of each plank.

The two outer wires (the top and bottom ones) go into the slots on top, the two middle wires go into the slots at the bottom.

Double-check around the box to make sure the wires are running parallel and not touching each other. They should have approximately the same distance between them at the corners as in the wire and spacer holders.

*These pieces are only used with a climbing frame.*

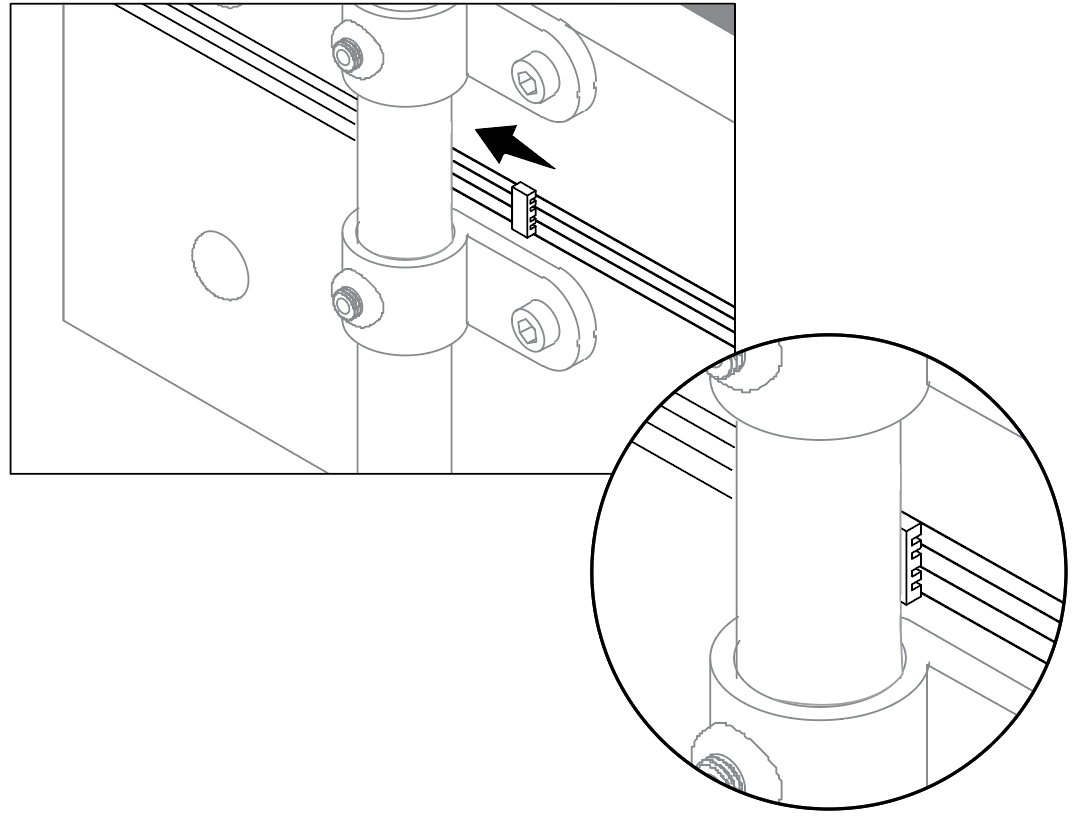

Use the two trellis spacers only if you have our trellis on your garden box. Insert the wires into the holders and push them under the post so that the wires cannot come into contact with it.

Check that the system is working

Check the functioning of the system

Everything is working properly if:

the green light on the box is blinking

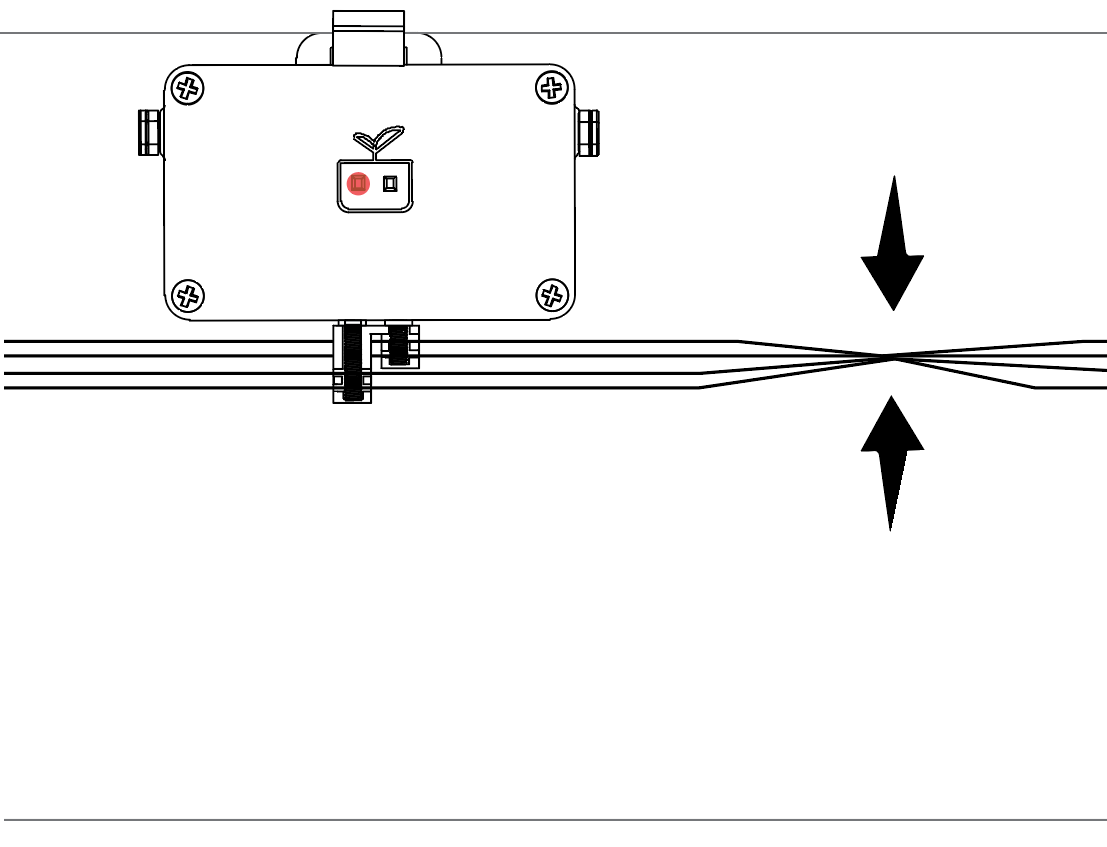

the red light blinks when you press the top and bottom wires together.

*The red light should blink when you press the wires together.*

Done!

Good work, from now on no more slugs can crawl into your bed from the outside * 🙂

In use

Check from time to time whether the lights still work. That can be hard to see in full daylight, so cover the lights with your hand or check in the evening.

If the green light flashes and the red light comes on when you press the wires together, everything is fine.
If the red light flashes, there is a short circuit: either because the wires are touching each other, or because something is touching the wires - a leaf or branch, for example.
If nothing flashes, the batteries are empty.

The batteries should last a whole vegetable garden season.

At the beginning of November, remove the control box from the wires. Take it indoors and remove the batteries. If you have used the batteries for a whole season, it is best to replace them in spring.

Around mid-March, hang the control box back on your raised bed: ready for another season without slugs 🙂

Replacing the batteries

To replace the batteries, leave the control box hanging on the raised bed. You do not have to remove it completely. Make sure no moisture gets inside the control box. So postpone the replacement if it is raining, or do it under an umbrella.

You need 3 regular AAA alkaline batteries. If you have rechargeable batteries of the same size, you can use those.

Unscrew the control box and remove the lid.
Replace the batteries in the holders inside the lid. Pay attention not to bend the metal contact points.
Then close the control box again, tighten the screws, and check for any gaps.
